S06NL15 Gear Pump

High strength aluminum alloy pump body is light in weight and low in noise; Alloy steel hard tooth surface has long transmission life and stable performance; DU Compound Bearing and High Performance Sealing Element with Small Starting Torque and Good Sealing Performance

Commodity name： S06NL15 Gear Pump
Commodity ID： cp0047

Category:

Spur High Pressure Gear Pump

Service:

hebeisairui@gmail.com

Product inquiry

Also like

产品描述

Use And Characteristics

① High strength aluminum alloy pump body light weight and low noise;

② Alloy steel hard tooth surface has long transmission life and stable performance;

③ DU composite bearing and high-performance sealing elements have small starting torque and good sealing performance;

④ Implement JB/T7041-2006;

⑤ The front cover is equipped with bearings to prevent lateral forces

Model Description

① Code name

② Classification code

③ Pressure grade (F: 20MPa)

④ Nominal displacement (mL/r)

⑤ Rotation direction S: left-handed; D: Dextral

⑥ Axial extension and flange [see appendix]

⑦ Oil port form [see appendix]

⑧ Front and rear cover material G: cast iron

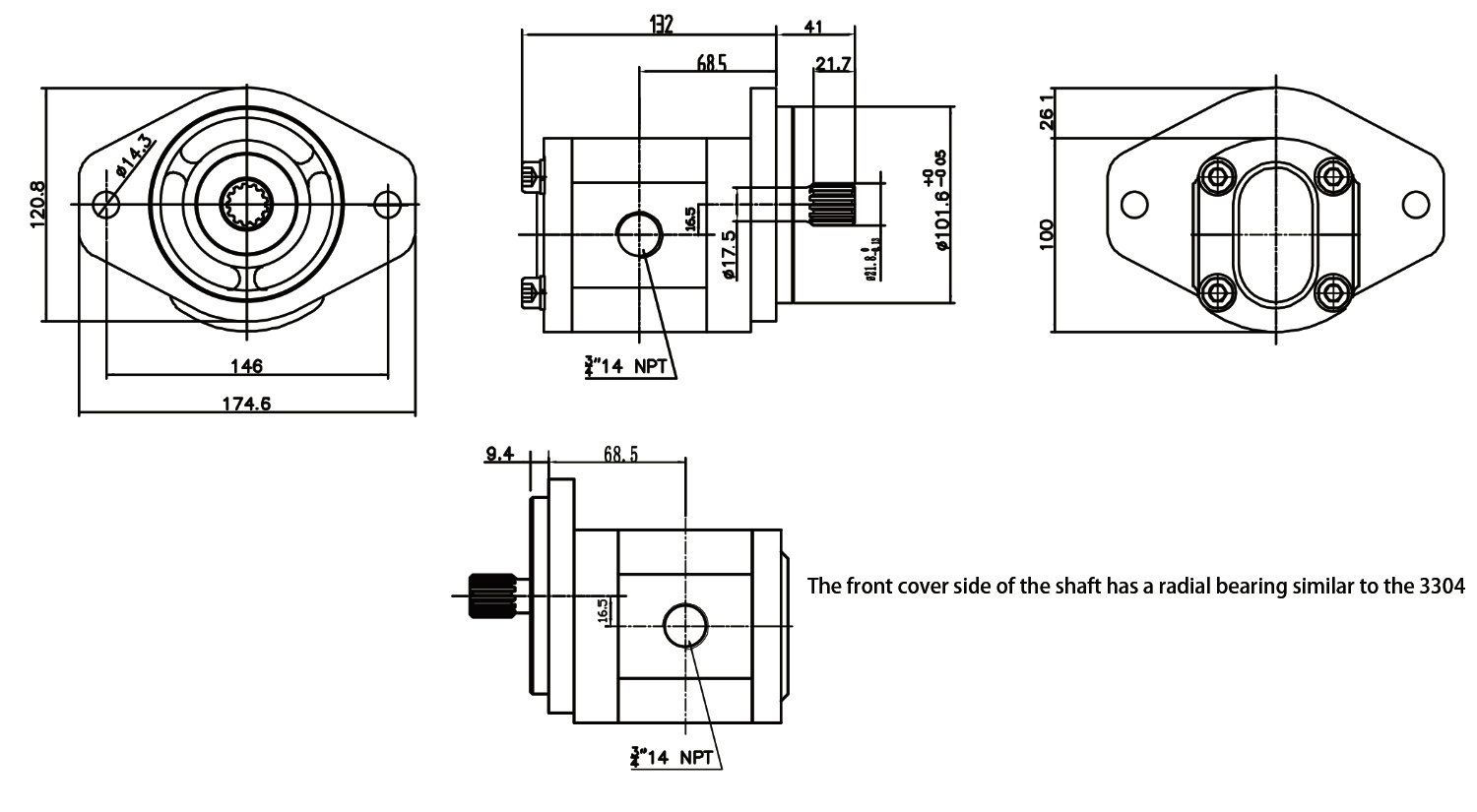

Outline Drawing

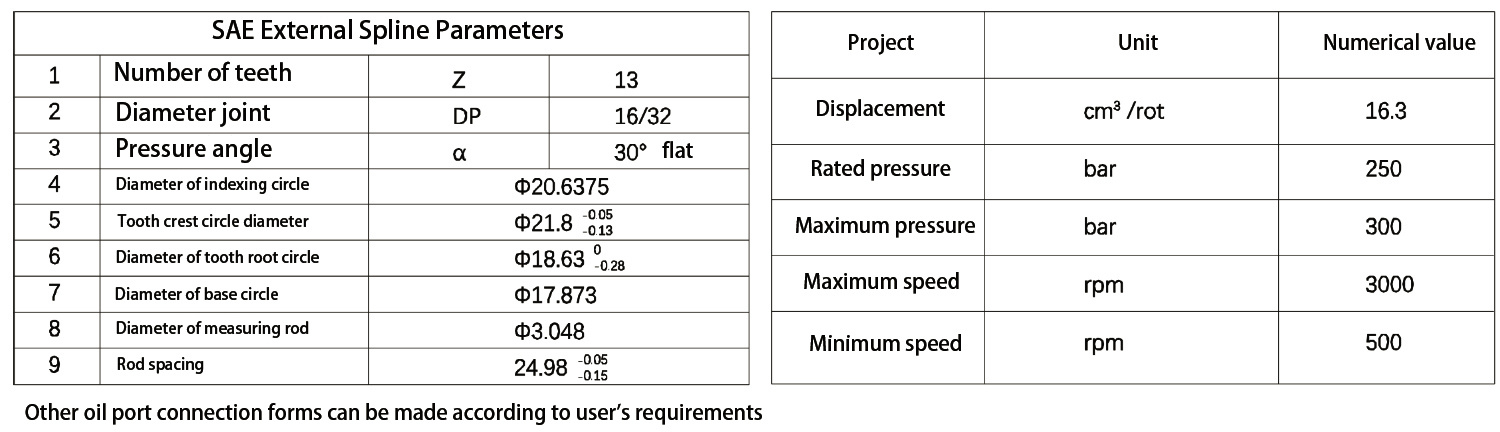

Performance Parameters
