S03XF03 Gear Pump

Nominal displacement: 7 displacement types are available, including 06mL/r, 08mL/r, 10mL/r, 14mL/r, 16mL/r, 20mL/r, and 25mL/r, which can be customized.

Commodity name： S03XF03 Gear Pump
Commodity ID： cp0051

Category:

Spur High Pressure Gear Pump

Service:

hebeisairui@gmail.com

Product inquiry

Also like

产品描述

Purpose and characteristics

Wide range, multiple displacement specifications, small size, light weight, reliable operation, convenient maintenance, and other characteristics. As a power source, it is widely used in hydraulic systems such as construction machinery, lifting and transportation machinery, and mining machinery.

In addition to single pump and double pump, CBK series gear pumps can also form triple and quadruple pumps, and can be equipped with safety valves for arbitrary selection by the host machine.

Model Description

① Code name

② Classification code

③ Pressure grade F: 20Mpa

④ Nominal displacement (mL/r)

⑤ Rotation direction S: left-handed; D: Dextral

⑥ See appendix for shaft extension and flange

⑦ See appendix for the form of oil port

⑧ Front and rear cover materials

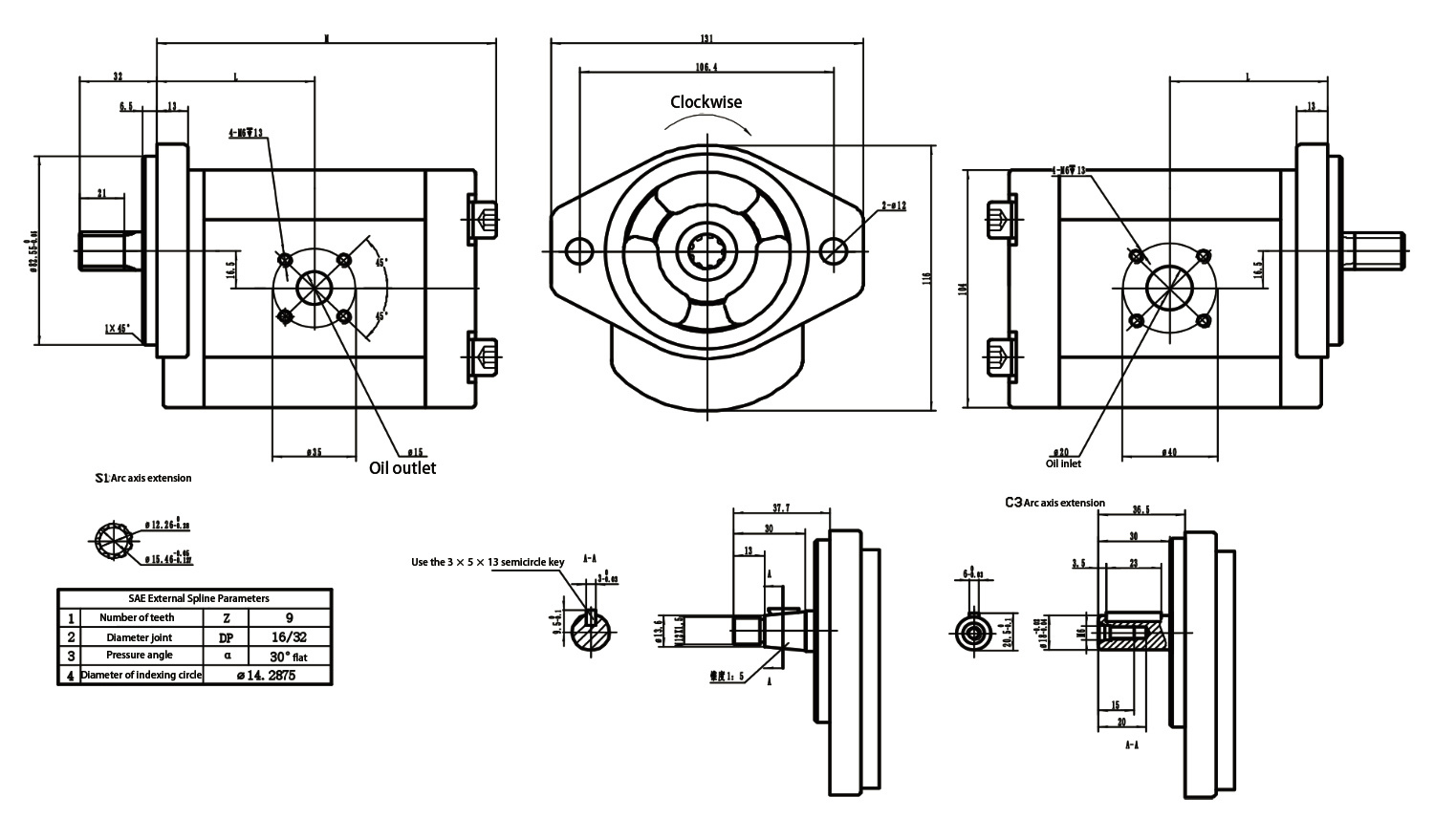

Outline Drawing

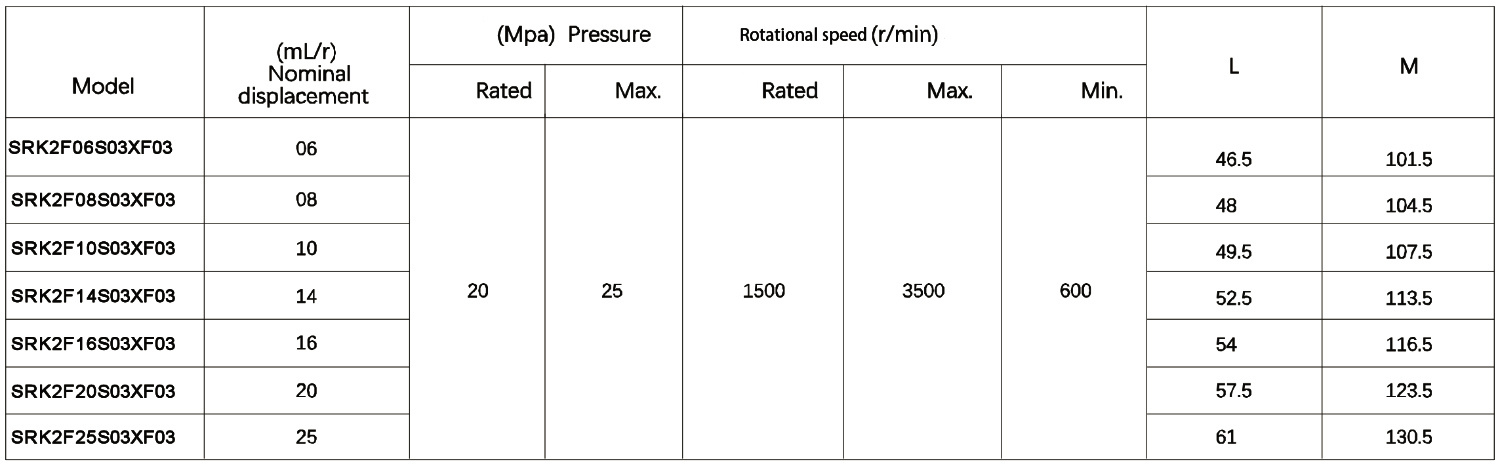

Performance Parameters
